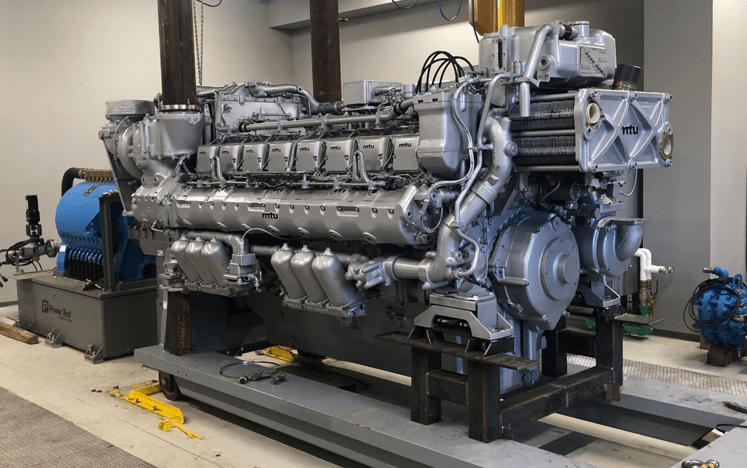

mtu 16V 396 TE74L

TYPE 16 Cylinder 90°V
(overhauled)
L X W X H MM 3070 x 1530 x 1660
DISPLACEMENT (L) 63.4
INTAKE METHOD Turbocharged
(DRY) KG 6140 KG
STATUS 0 from last W6 overhaul
STOCK STATUS 1 unit
READ MORE

Nuclear power emergency diesel generator set solution

mtu EDGs for nuclear power plants are based on mtu Series 956/4000 or Bergen B32:40 16V engines covering a power range between 1500 kWe and 8000 kWe.

mtu all EDG projects are organized and implemented in line with NPP-related quality standards such as IAEA 50-C-Q, KTA 1401 and the Chinese standard HAF. mtu EDGs are safety-classified to meet the strictest regulations in the nuclear power industry, with qualifications in line with IEEE 387 and KTA 3702, for example. In addition, mtu NPP-specific digital engine controller – SafeDEC – is qualified to comply with IEC 60880 standards..

Engine model 12V 4000 P63 16V 4000 P63 20V 4000 P63
Dimensions L x W x H 6.2 x 2.7 x 2.9 m 6.7 x 2.7 x 2.9 m 7.2 x 2.7 x 2.9 m
Weight approx. 24 t 28 t 32 t
Start-up time 10 s 10 s 10 s
Nominal power 1500 kWe 2000 kWe 2500 kWe
Nuclear codes KTA 3702/IEEE 387* KTA 3702/IEEE 387* KTA 3702/IEEE 387*
Number of cylinders 12V 16V 20V
Rated speed 1500 rpm 1500 rpm 1500 rpm
Cylinder config. 90°V 90°V 90°V
Bore/Stroke mm 170/210 170/210 170/210
Electronic engine governor mtu SafeDEC mtu SafeDEC mtu SafeDEC

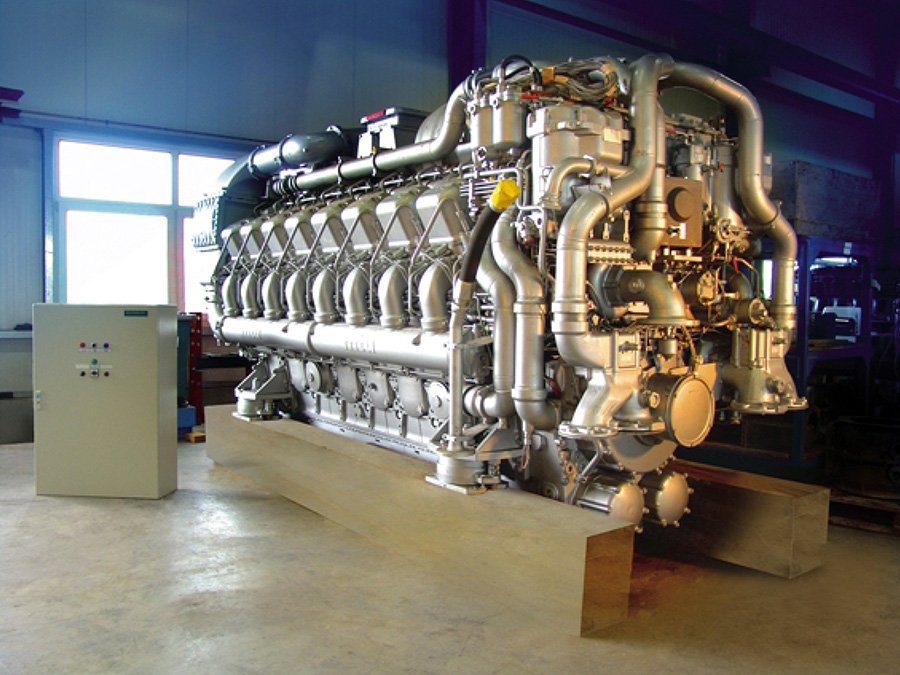

Engine model 12V 956 TB33 16V 956 TB33 20V 956 TB34
Dimensions L x W x H 7.6 x 3.2 x 4.1 m 8.3 x 3.2 x 4.1 m 9.4 x 3.2 x 4.1 m
Weight approx. 50 t 57 t 63 t
Start-up time 10 s 10 s 10 s
Nominal power 3600 kWe 4800 kWe 6300 kWe
Nuclear codes KTA 3702/IEEE 387* KTA 3702/IEEE 387* KTA 3702/IEEE 387*
Number of cylinders 12V 16V 20V
Rated speed 1500 rpm 1500 rpm 1500 rpm
Cylinder config. 60°V 60°V 60°V
Bore/Stroke mm 230/230 230/230 230/230
Electronic engine governor mtu SafeDEC mtu SafeDEC mtu SafeDEC

At Engine Family, we stand behind the satisfaction of every customer. Here is what this means to us:

  • Offering all-round assistance to help you choose the right diesel engine, generator, impeller, or whatever you need.
  • Making sure you’re clued-up on all major specifications and characteristics of the product you’re about to order.
  • Ensuring inventory availability through our range of warehouses so that your desired diesel engine or set of parts is always in stock.
  • Delivering your order to wherever you’re located and facilitating the customs clearance process.
  • Providing after-sales service to meet your diesel engine maintenance needs and foster lasting customer relationships.

If you’re interested in some diesel engines or spare parts found in Engine Family’s selection, please contact us. Your first-class service starts from the moment we answer your call!

APPLICATION

Fishing, working boat diesel engine

LEARN MORE ›

Marine

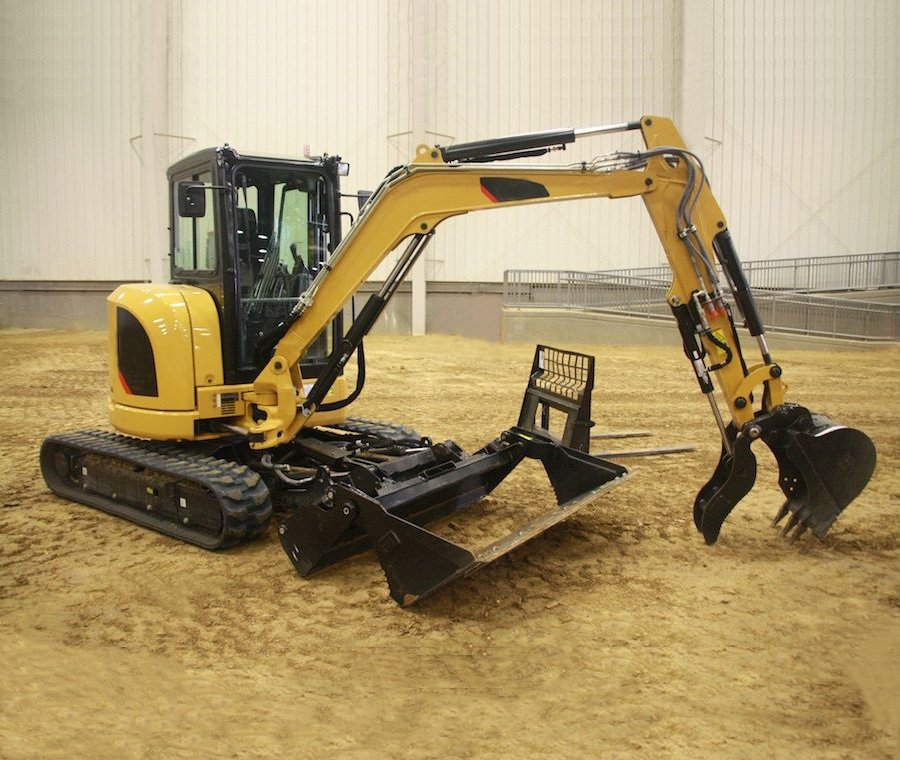

Loader,Excavator,grader,roller diesel engine

LEARN MORE ›

Construction

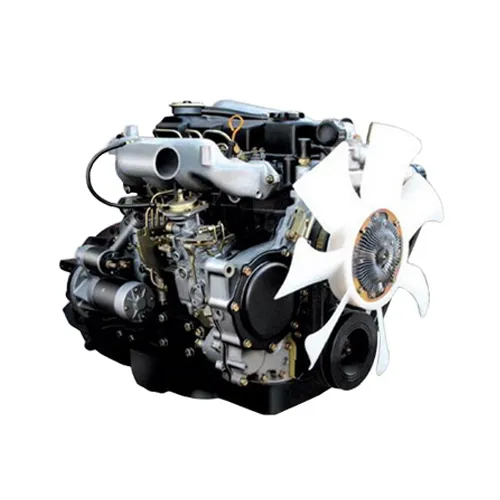

Truck, SUV,PICK UP engine
